Telehandler 3507: Strong performance in a compact format.

The Kramer 3507 telescopic loader is the ideal telescopic loader for a wide range of applications. The telescopic handler has a compact design, low overall height and small turning radius. Despite its dimensions, it can be used in different ways thanks to the stacking height of 7.0 m and the 3.5 t payload. The 3507 telescopic handler's stepless travel drive up to a maximum of 40km/h, 140l/min load-sensing working hydraulics and intelligent driver assistance systems ensure maximum efficiency. In addition, the ergonomic and functional cabin ensures stress-free work.

Two different cab heights, for example on the telehandler 3507.

Two selectable cabin heights

Improved all-round visibility for the driver thanks to the elevated cab
Low cab variant for applications with limited clearance heights

The colour coding of the switches makes it easier to find different functions.

Color-coded switches

Uniformed color scheme for hydraulic, electric, driving, and safety features
Increased safety due to minimized danger of mixing up switches
Operating concept that reaches across all models to simplify the handling of the fleet

Kramer telehandlers have a modern control panel with 7-inch LCD display.

7" LCD display

All relevant machine data at a glance summarised on the display
Operating and setting the machine’s parameters easily and intuitively using the jog dial
Safe jog dial operation possible, even when driving

360° all-round visibility

Excellent 360° visibility due to the large glazed areas and narrow cabin pillars
Panoramic front windscreen for an ideal view of the attachment
High degree of work quality and safety as the work area can be optimally viewed

More Features

The pedals in the footwell are not mounted on the ground.

Suspended pedals

Easy cleaning of the cabin floor due to free space underneath the pedals
Increased ease of use thanks to ergonomic pedal arrangement
One-piece, removable doormat makes cleaning easier

Steering column can be adjusted in inclination and usually also in height.

Adjustable steering column

Setting an ergonomically favorable position for each driver
More space for getting in and out of the vehicle by folding away the steering wheel

Combined brake-inch pedal

Simple and safe operation thanks to combined brake-inch pedal
Wear-free regulation of the working speed even at high engine speeds
Maximum working hydraulics even at low working speeds

Convenient pressure relief due to optimally placed button on the loading unit

Pressure relief 3. Steering committee

Quick and easy coupling and uncoupling of attachments with additional hydraulic functions while the engine is running
Convenient pressure relief thanks to optimally positioned button on the loading system
Saves time when changing hydraulically operated attachments

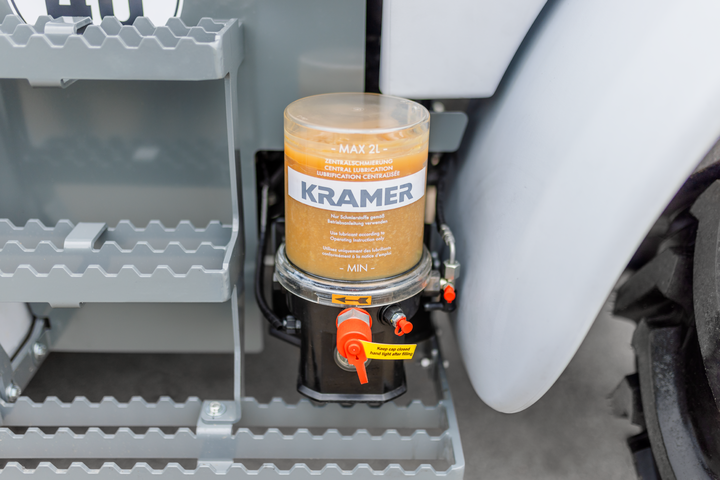

The central lubrication unit of the 8 series from Kramer.

Automatic central lubrication system

Longer service life and value retention of the machine thanks to automatic lubrication of all lubrication points
Time and cost savings thanks to low and bundled maintenance of the centralized lubrication system
Optimum lubrication thanks to adjustable time intervals and grease quantities

All-wheel steering

High stability even at full steering lock thanks to the undivided frame
Maximum maneuverability thanks to steering angles of up to 40° on both the front and rear axles
Consistent payload independent of the steering angle for constant leverage ratios

The Kramer telehandler with front wheel steering on the example of the 4507.

Front axle steering

Safe and familiar road travel at high speed
Precise guidance of special attachments
Easy maneuvering in trailer mode

Crab steering

Easy maneuvering in confined spaces
Gentle driving on sensitive surfaces
Simple control in combination with special attachments

Please note that the product range may vary depending on the country.
The technical data of the products may vary accordingly with the selection of different options.
